Concept

Pipeline.rb is a tool for applying image transformations to sequences of images, whether they be video files or directories. In particular, I wrote Pipeline to aid in processing animations, however it’s convenience is not limited to this scope.

The driving ideas behind Pipeline are:

• Firstly, the code describing image transformations ought to be separated from the code that applies them.
• Secondly, the language describing said transformations ought to offer a number of abstractions to facilitate complex, temporal image transformations.

In other words, Pipeline parses and applies a meta-language contained within so-called plan files across video files, directories of images, etc.:

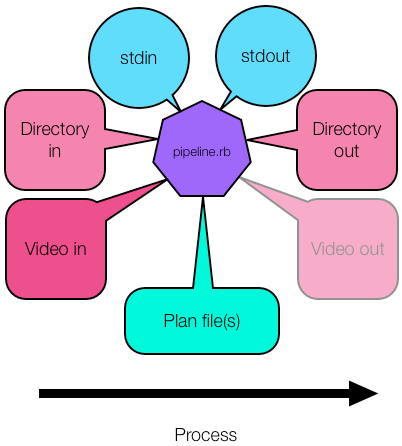

Pipeline takes a variable number of plan files which describe a set of image transformations. Next, Pipeline applies these transformations over either:

• a single image via stdin,
• a directory of images,
• or frames of a video.

Finally, the resulting processed images may be dumped to a new directory or saved or in-place, or — in the case of stdin — the singular image which gets processed outputs to stdout.

Plan Files

The syntax for Pipeline.rb’s plan-files is inspired in part by the patching systems implemented in both Max/MSP and Pure Data. Moreover, the language is intended to be equally intuitive.

Plans allow for two types of commands:

• Variable assignments, and
• Function calls.

Both variable assignments and function calls take arguments of the following types:

• Integer
• Float
• Predefined variables (i.e. $1, $alpha, etc.)
• External files (i.e., `%(masks/big_willie_style.png)``)
• String (this is tentative…)

For example, a plan to swap the green and blue channels of an image, while inverting the red channel, takes the following form:

splitRGB $1
invert $1
joinRGB $1 $3 $4

It is important to note that the numeric variables — $1, $2, etc. — are routinely overwritten by function calls within a plan. For example, had we wanted to apply ImageMagick’s edge filter with a strength of 8 to an image, we would have written:

splitRGB
$red = $1
edge $3 8
joinRGB $red $2 $1

In the above example, splitRGB saves the red channel of our input to $1. We must store this before we call edge on the blue channel ($2), since the output of edge will be stored in $1. Finally we rejoin the channels. Note that the green channel ($2) is unmodified.

Improved Syntax

Relying on the numbered variable system in the above examples grows cumbersome as the complexity of a plan file increases. Named variables circumvent this problem. Prior to this language feature, the following plan would have taken nearly 7 lines:

$r, $g, $b = split_rgb $1
$mask = center_fit %(images/masks/big_willie_style.png) $r
$r = multiply $mask $r
join_rgb $r $g $b

Significantly, in the above example, only the final line modifies a numbered variable; join_rgb overwrites $1.

Todo

I am considering adopting a Ruby-esque syntax, wherein any function call with an exclamation mark modifies its first argument in-place; i.e.,

multiply! $red $mask

would be the same as

$red = multiply $red $mask

Implementation Details

Transforms

All plan file commands are stored in a Hash, with keys corresponding to function names and values corresponding to Lambda functions of type:

State -> Args -> State

Where State is a Hash of String/Object pairs corresponding to variable names and values.

Args is an array of Lambda functions of type

State -> Int | Float | String | [String] | Magick::Image | …

Variable arguments lookup their variable name against the State passed to them and return the corresponding value. Int, Float, and String arguments ignore State and return themselves.

Processing

The aforementioned architecture makes Pipeline’s image processing as simple as:

1. Parse plan file(s) line-by-line,

• looking-up each function name against the transforms Hash and
• appending to a List of transforms

2. inject an initial State populated with the source image through transforms

• each transform will update the State passed to it accordingly

3. Return or save the final image contained in the State

This algorithm is evident in the following class definitions:

class Transforms
  def initialize
    @transforms = []
  end
  def add(&transform)
    @transforms << transform
  end
  def to_proc
    # Here’s the work-horse: inject() is like Haskell’s `mapAccumL`
    lambda { |state| @transforms.inject(state) { |state, fn| fn.call(state) } }
  end
end

class Transform
  def initialize(name, args)
    @transform = $transforms[name] # instance looks itself up by name
    @args = args # `args` is list of Lambdas of type State -> Arg
  end def to_proc
    # The following returns an `update`-ed hash
    lambda { |state| state.update(@transform.call(state, @args)) }
  end
end
